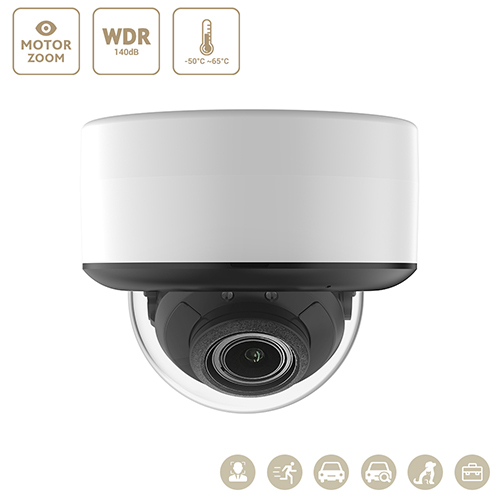

8MP/5MP/2MP Motorized Dome EiZSense IR Network Camera

Item No.: IPC-MH3-5X11-Z
> 120dB WDR, 0.003 Lux min. illumination, H.265+/H.264+/H.265/H.264/MJPEG.
> 2.7-13.5mm motorized lens, IR distance max. 40m.
> POE&DC12V, built-in mic, micro SD slot, hardware reset.
> Audio in/out, alarm in/out.
> IP67&IK10, -40°C ~60°C working temperature.
> Non-Customizable Video Analysis Based on NPU.
  • Resolution:
    8MP 30FPS
    5MP 30FPS
    2MP 30FPS
Description Specification Dimensions(mm)
Description

> Adopts 8MP/5MP/2MP progressive CMOS, provides 8MP 20FPS/5MP 30FPS/2MP 30FPS Stream.

> 120dB WDR, 0.003Lux min. illumination.

> 2.7-13.5mm motorized lens.

> 4pcs of array IR, IR distance up to 40m.

> PoE&DC12V.

> Built-in waterproof high quality microphone (-32dB).

> Built-in micro SD slot for local recording, supporting Max. 128GB.

> Built-in hardware reset.

> Audio 1in/1out, alarm 1in/1out.

> IP67&IK10, -40°C ~60°C working temperature.

> Non-Customizable Video Analysis Based on NPU

    Detection: Human/Face/Vehicle Detection

    Enhanced Detection: People Counting/Loitering/Object Left/Object Missing

    Perimeter Protection: Tripwire/Intrusion by human or vehicle

    Smart MD: Motion/Human/Vehicle

Specification

Model IPC-MH3-5811-Z IPC-MH3-5511-Z IPC-MH3-5211-Z
Camera
Main Solution SSC338Q+IMX415 SSC30KQ+IMX335 SSC336Q+IMX307
Image Sensor CMOS 1/2.8’’ 8Megapixel 1/2.7’’ 5Megapixel 1/2.8’’ 2Megapixel
Effective Pixels 3840*2160 2592*1944 1920*1080
Min. Illumination 0.003Lux @ (F1.3, AGC ON), 0 Lux with IR ON
Shutter 1/2s-1/50,000s
Lens 2.7-13.5mm motorized lens
Day&Night ICR, Smart IR, Controllable IR LEDs
DNR 3D Digital Noise Reduction
WDR Yes, real WDR 120dB
Compression Standard
Codec H.265+/H.264+/H.265/H.264/MJPEG.
Data Rate -Main 256-16000kbps 256-8000kbps 256-8000kbps
Data Rate -Sub 50-1000kbps 50-1000kbps 50-1000kbps
Audio Compression G.711A/G.711U/AAC/PCM/G.726
Audio Record Yes
Max. Resolution 8MP(3840*2160) 5MP(2592*1944) 2MP(1920*1080)
Frame Rate 20FPS 30/25FPS 30/25FPS
Features WDR, 3D DNR, AGC, MGC, AWB, ROI, Motion Detection, Privacy Masking
Image Adjustment Mirroring, Saturation, Brightness, Sharpness, Contrast Adjustment, Exposure, WDR, Shutter, IRIS, LDC etc.
Network
Protocols TCP/IP, UDP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP; SNMP v1/v2/v3, IEEE802.1X, IPv4/v6; Bonjour; SIP, ICMP, IGMP, QoS, SSL/TLS;
Compatibility ONVIF (Profile S/Profile G/ Profile T); CGI;
HIKVISION/Dahua/XM;
RTMP, RTSP, NFS, VoIP, TS streaming
HTTP Streaming/HTTP Notification
AI Features Non-Customizable Video Analysis Based on NPU
Detection: Human/Face/Vehicle Detection
Enhanced Detection: People Counting/Loitering/Object Left/Object Missing
Perimeter Protection: Tripwire/Intrusion by human or vehicle
Smart MD: Motion/Human/Vehicle
Interface
Network RJ-45 LAN Port
POE Yes, Built-in POE
Audio Built-in Microphone, line audio 1in/1out
Alarm Alarm in/out
Local Recording Built-in micro SD slot for local recording, supporting max. 128GB
Hardware Reset Yes, Built-in reset button
General
Color White
Accessories Printed User Manual, Installation Kits, CD or Download Link QR Code Stickers
Power Supply PoE&DC12V
Work Humidity 10%-90%
Operation Temperature -40-60
Surge Protection External/Built-in SPD
Proof Metal; IP67&IK10; for both indoor & outdoor.
Power Consumption Max. 17W
Size Φ120*110.8mm
Weight N.W. 700g: G.W.: 800g
* We may adopt the backup solution when the main solution chipset is in shortage.
We reserve the right to change products and specifications without prior notice. This information does not convey any license by any implication or otherwise under any patents or other rights.
Dimensions(mm)
