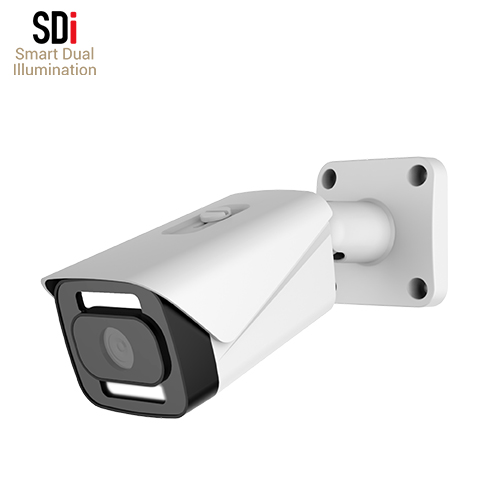

8MP/5MP/2MP Fixed Bullet Value Smart Light Camera

Item No.: IPC-MG2P-3x30-SDI
> WDR 120dB, 0.005 Lux min. illumination, H.265+/H.264+/H.265/H.264/MJPEG.
> F1.0, 2.8mm/3.6mm/6.0mm fixed lens, distance max. 30m.
> POE&DC12V, built-in mic, micro SD slot, hardware reset.
> IP67&IK10, -40°C ~60°C working temperature.
> -40°C ~60°C working temperature.
>  Smart Detection based on CV
  • Resolution:
    8MP 15FPS
    5MP 30FPS
    2MP 30FPS
Description Specification Dimensions(mm)
Description

> Adopts 8MP/5MP/2MP progressive CMOS, provides 8MP 15FPS/5MP 30FPS/2MP 30FPS Stream.

> WDR 120dB, 0.005 Lux min. illumination.

> F1.0, 2.8mm/3.6mm/6.0mm lens.

White&IR Dual Smart Light (2in1 Illuminators), distance 20-30m.

> PoE&DC12V.

> Built-in waterproof high quality microphone (-32dB).

> Built-in micro SD slot for local recording, supporting Max. 128GB.

> Built-in hardware reset.

> IP67&IK10, -40°C ~60°C working temperature.

> Smart Detection based on CV

     Detection: Human/Vehicle Detection

     Perimeter Protection: Tripwire/Intrusion by human or vehicle

     Smart MD: Motion/Human/Vehicle

Specification

Model IPC-MG2P-3830-SDI IPC-MG2P-3530-SDI IPC-MG2P-3230-SDI
Camera
Main Solution SSC328+IMX415 SSC337DE+IMX335 SSC335+SC200AI
Image Sensor CMOS 1/2.8’’ 8Megapixel 1/2.8’’ 5Megapixel 1/2.8’’ 2Megapixel
Effective Pixels 3840*2160 2560*1920 1920*1080
Min. Illumination  0.005Lux @ (F1.0, AGC ON), 0 Lux with IR ON
Shutter 1/2s-1/50,000s
Lens F1.0, 2.8mm/3.6mm/6.0mm fixed lens optional
Day&Night ICR, Smart IR, Controllable IR LEDs, Controllable White&IR Dual Smart Light LEDs
DNR 3D Digital Noise Reduction
WDR Yes, real WDR 120dB
Compression Standard
Codec H.265+/H.264+/H.265/H.264/MJPEG.
Data Rate -Main 256-16000kbps 256-8000kbps 256-8000kbps
Data Rate -Sub 50-1000kbps 50-1000kbps 50-1000kbps
Audio Compression G.711A/G.711U/AAC/PCM/G.726
Audio Record Yes
Max. Resolution 8MP(3840*2160) 5MP(2560*1920) 2MP(1920*1080)
Frame Rate 15FPS 30/25FPS 30/25FPS
Features DWDR, 3D DNR, AGC, MGC, AWB, ROI, Motion Detection, Privacy Masking
Image Adjustment Mirroring, Saturation, Brightness, Sharpness, Contrast Adjustment, Exposure, DWDR, Shutter, IRIS, LDC etc.
Network
Protocols TCP/IP, UDP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP; SNMP v1/v2/v3, IEEE802.1X, IPv4/v6; Bonjour; SIP, ICMP, IGMP, QoS, SSL/TLS;
Compatibility ONVIF (Profile S/Profile G/ Profile T); CGI;
HIKVISION/Dahua/XM;
RTMP, RTSP, NFS, VoIP, TS streaming
HTTP Streaming/HTTP Notification
AI Features Smart Detection based on CV
Detection: Human/Vehicle Detection
Perimeter Protection: Tripwire/Intrusion by human or vehicle
Smart MD: Motion/Human/Vehicle
Interface
Network RJ-45 LAN Port
POE Yes, Built-in POE
Audio Built-in Microphone
Local Recording Built-in micro SD slot for local recording, supporting max. 128GB
Hardware Reset Yes, Built-in reset button
General
Color White
Accessories Printed User Manual, Installation Kits, CD or Download Link QR Code Stickers
Power Supply PoE&DC12V
Work Humidity 10%-90%
Operation Temperature -40℃-60℃
Surge Protection External/Built-in SPD
Proof Metal; IP67&IK10; for both indoor & outdoor.
Power Consumption Max. 17W
Size 168.61×67.27×63.95mm
Weight N.W.: 380g, G.W.: 480g
* We may adopt the backup solution when the main solution chipset is in shortage.
We reserve the right to change products and specifications without prior notice. This information does not convey any license by any implication or otherwise under any patents or other rights.



Dimensions(mm)
