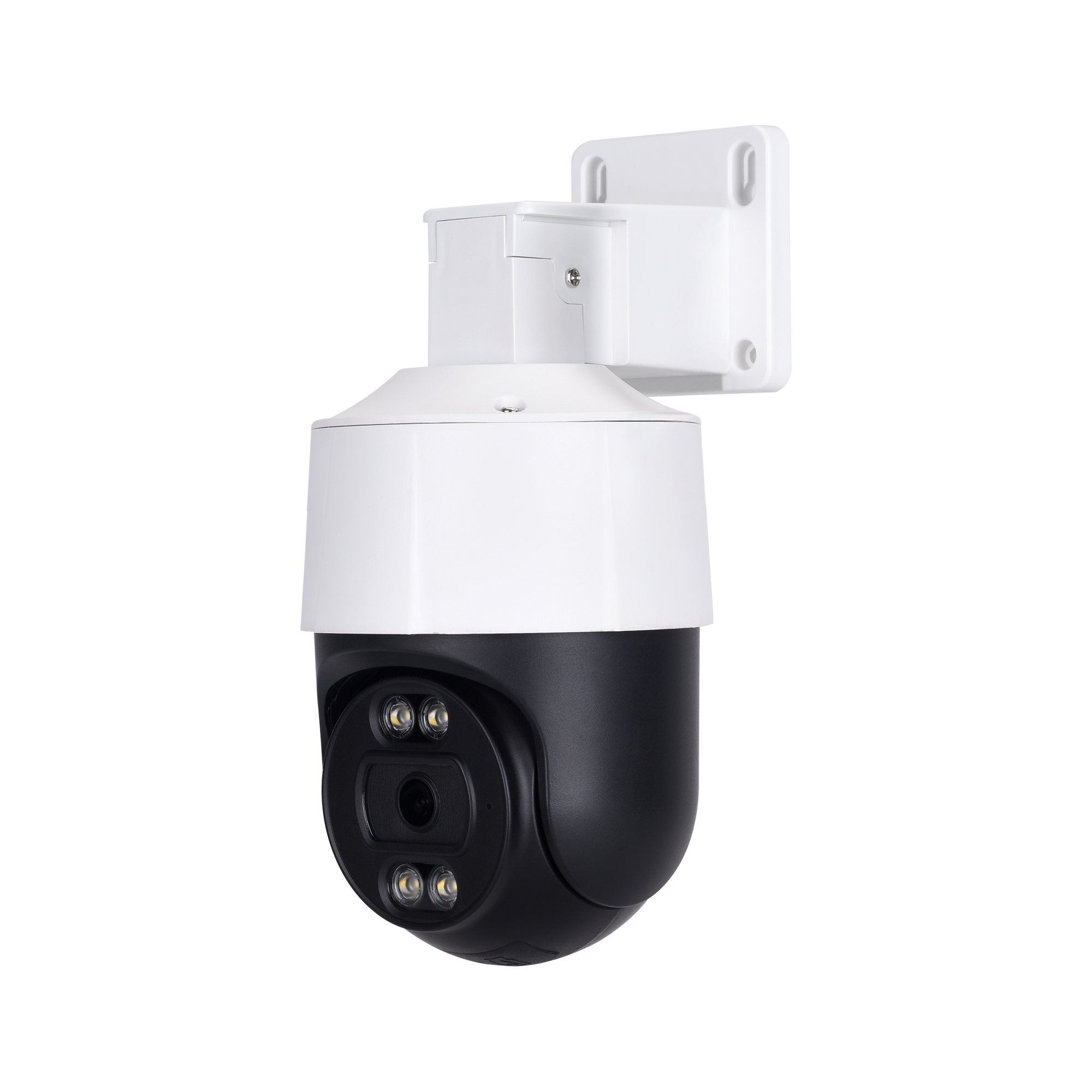

2MP/5MP Indoor and Outdoor Mini PT PoE Camera

Item No.: IPC-P10-1x00
> Super high definition 2MP/5MP and ultra clarity at night.
> 2.8mm/3.6mm fixed lens, IR distance max. 30m.
> PoE&DC12V.
> Built-in microphone and speaker for two-way talk.
> Built-in micro SD slot for local recording.
  • Resolution:
    5MP 25FPS
    2MP 30FPS
Description Specification Dimensions(mm)
Description

> Adopts 2MP/5MP progressive CMOS, provides 2MP 30FPS/5MP 25FPS Stream.

> WDR, 0.01 Lux min. illumination.

> 2.8mm/3.6mm fixed lens.

> With 4pcs of IR and 4pcs of spotlight, it can provide 30m IR night vision and its spotlights ensure color night vision, making night scenes as vivid as day.

> PoE&DC12V.

> Built-in microphone and speaker for two-way talk.

> Built-in micro SD slot for local recording.

> With 355° pan and 90° tilt, we can monitor a surprisingly large area with a single security camera. It can also keep track of the moving person/vehicle automatically.

> When P10 detects someone suspicious, its spotlights and siren will be triggered or manually activated wo warn off the unwanted guest, eliminating potential threats. More Security with Dual Warning!

> -30°C ~60°C working temperature.

> Smart Detection based on CV

    Detection: Human/Vehicle Detection

    Perimeter Protection: Tripwire/Intrusion by human or vehicle

    Smart MD: Motion/Human/Vehicle

    Face Detction / Baby Crying detection / Pet Detection optional.















Specification
Model IPC-P10-1500 IPC-P10-1200
Camera
Solution T31X+GC4653 T31N+GC2063
Image Sensor 1/3” 4Megapixel 1/2.9’’ 2Megapixel
Min Illumination 0.01Lux @ (F1.8, AGC ON), 0 Lux with IR ON
Shutter 1/2s-1/50,000s
Lens 2.8mm/3.6mm fixed lens
Day&Night IR-CUT Auto Switch, Manual Switch, Timing Switch
DNR 3D Digital Noise Reduction
WDR Yes, digital WDR
Compression Standard
Codec H.265/H.264/MJPEG
Data Rate Main: 256-8000kbps, Sub: 50-1000kbps
Audio Compression G.711A/G.711U/AAC/PCM/G.726
Audio Record Yes
Max. Resolution 5MP(2560*1920) 2MP(1920*1080)
Frame Rate 25fps 30fps
Features DWDR, 3D DNR, AGC, MGC, AWB, ROI, Motion Detection, Privacy Masking
Image Adjustment Mirroring, Saturation, Brightness, Sharpness, Contrast Adjustment, Exposure, DWDR, Shutter, IRIS, LDC etc.
Network
Protocols TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP
PPPoE, UPnP, SMTP, P2P
Compatibility HTTP CGI, ONVIF
Interface
Network Interface RJ-45 LAN Port
Audio Input Built-in microphone
Audio Output Built-in speaker
Local Recording Built-in micro SD slot, supporting maximum 256GB
Hardware Reset Yes
General
Color White&Black
Accessories Printed User Manual, Installation Kits
Power Supply PoE&DC12V
Work Humidity 10%-90%
Operation Temperature -30 – 60
Proof Plastic, IP66 waterproof; for indoor and outdoor
Power Consumption Max. 6.2W
Size 198mm×119.5mm×102mm
Weight N.W.: 565g, G.W.:685 g
We reserve the right to change products and specifications without prior notice. This information does not convey any license by any implication or otherwise under any patents or other rights.
Dimensions(mm)
